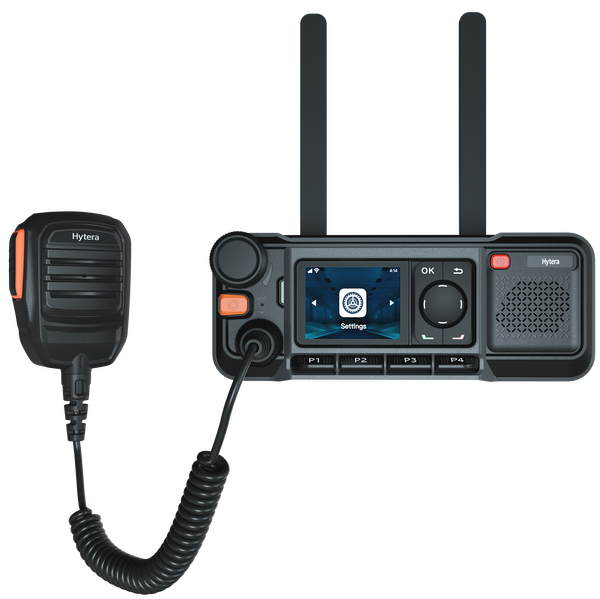

Hytera MNC360 PoC Mobile Radio

Push-to-Talk over Cellular (PoC) Mobile Radio

The MNC360 is a POC mobile radio designed for in-vehicle communication. With Hytera innovative design, it provides reliable, loud and clear voice service for various field communications scenarios.
The simple-to-use design enables ease of radio installation, removal, and operation. Working as a professional business-ready PTT mobile radio, the MNC360 is the ideal communication device in the transportation industry.

Technical Specifications

Network
Frequency Band
GSM: 850/900/1800/1900
WCDMA: B1/B2/B3/B4/B5/B8
TDD-LTE: B38/B39/B40/B41 (2496–2690 MHz);
FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B26/B28

Hardware
Operating System Android 7.1
Memory 1GB Ram + 8GB ROM
TF Card 128GB (Max)
Dimensions (H x W x D) 170mm x 66mm x 39.3mm
Weight 300g
Display Screen Size 2.0 Inches
Display Resolution 320x240mm
Sim Card 2x Micro-Sim
Positioning
GPS/BDS/GLONASS/Galileo/A-GPS
WLAN 2.4 GHz, 802.11 b/g/n
BT BT 4.2
NFC Optional

External Interfaces
Micro-USB 2.0 (OTG)
3.5 mm audio jack

Two LTE Antenna Ports
2-pin external speaker port
GPS antenna connector
Power inlet 10-pin aviation port
Input Voltage 13.6 ±15% V DC
Speaker 4W Built in (8W External)
Environment
Operating Temperature -20°C to 60°C
Storage Temperature -40°C to 85°C
ESD
IEC 61000-4-2, (ESD) 12kV (air); 8kV (contact)
Ingress Protection IP54
Certification Certificate FCC/IC/CE
