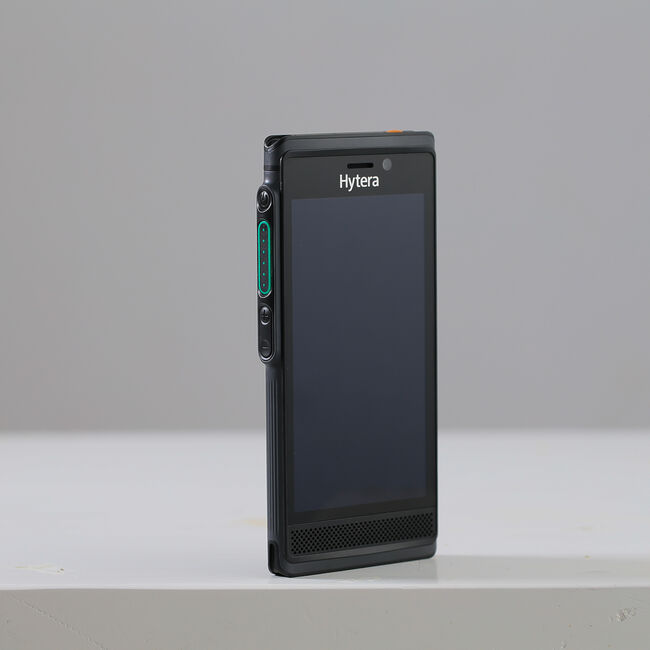

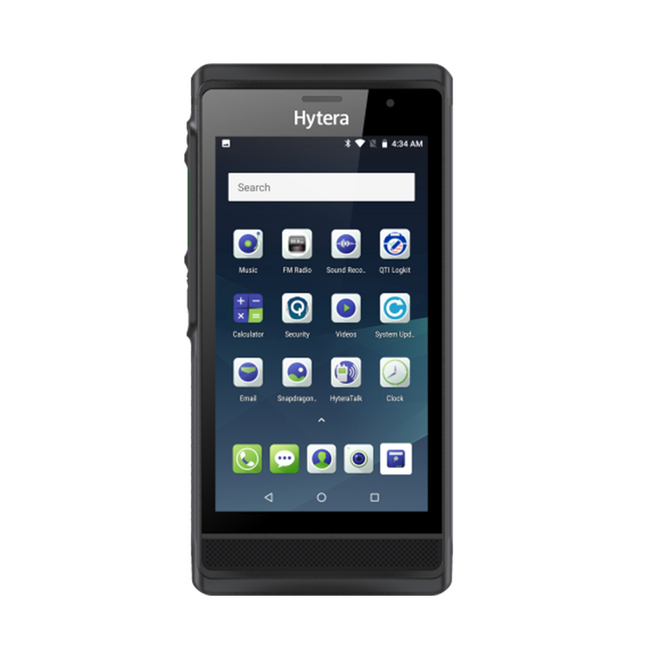

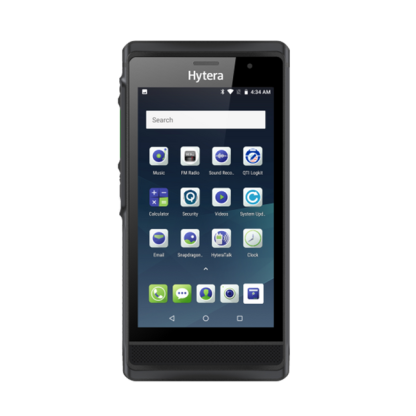

Hytera PNC550 Push-to-Talk over Cellular (PoC)

Integrating smartphone and professional Push-to-Talk over cellular functionality

The PNC550 is a smart PoC terminal, integrating smart phone and professional Push-to-talk over cellular functionality.
Hytera’s PNC550, is equipped with Android 8.1 operating system, 5-inch multi-touch screen, high definition camera and
2W high fidelity speaker; not only does this product meet the basic needs of voice intercom for industry users, but also
delivers the requirements for multimedia usage. PNC550 is compatible with a range of PoC solution platforms on the
market and can be adapted to individual needs of the customer

Standard package: Radio, battery, power adapter including
USB cable, screen protector.

Technical Specifications

Standards and Frequencies

LTE
FDD LTE: B1/B5/B7/B8/B20/B26/B27/B28
TDD LTE: B38/ B39/B40/B41
WCDMA B1/B3/B5/B8
GSM 850/950/1800/1900MHz
WLAN 2.4GHz, 802.11 b/g/n
Bluetooth BT 4.1
Positioning System GPS (AGPS), Beidou/Glonass/ Galileo/Network
NFC Support

Support

Audio and Video
Audio Format MP3: aacplus, eAAC, AMR-NB, AMR-WB, G-711, Windows media audio, (WMA) 9/10 Pro
Video and Image Format
H.263, PO, H.264, BP/MP/ HP, MPEG-4, SP/ASP, DivX, 4x/5x/6x, VP8, VP9, H.265, MP, JPG, GIF, BMP, PNG,WEbP
Environmental

Dust and Water proof IP68
MIL-STD MIL-STD-810G
Drop Resistance 1.2m
